Connect Blinker to IR sensor of TV


IR repeater example from DIY project



Infrared Repeater Parts List

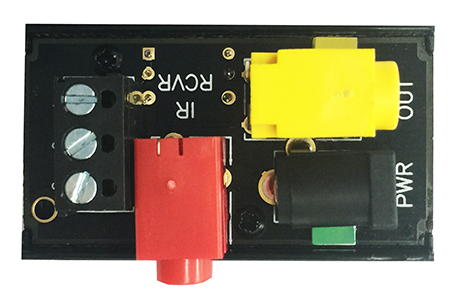

IR connector - connects the 12V power, IR emitter (blinker), and IR receiver (IR eye).
Everything shown must be plugged in for your remote to function.

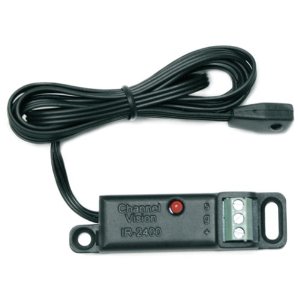

IR receiver - the eye must be positioned to have line-of-sight to your remote control.

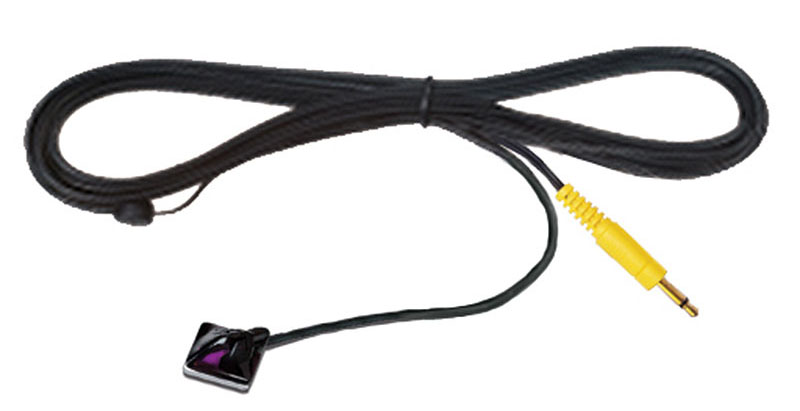

IR emitter (blinker) - attach the blinker to the IR sensor of your TV

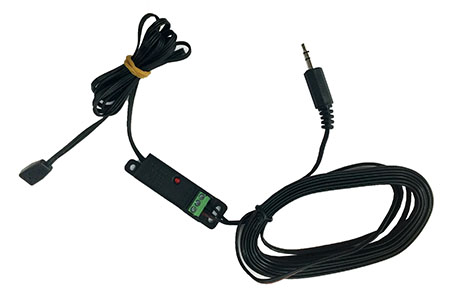

IR receiver--the eye looks for the signal from your remote, then passes it along to the IR emitter

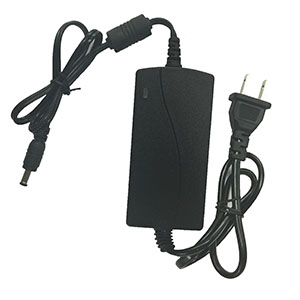

12v adapter
12v power cord with breakout style adapter

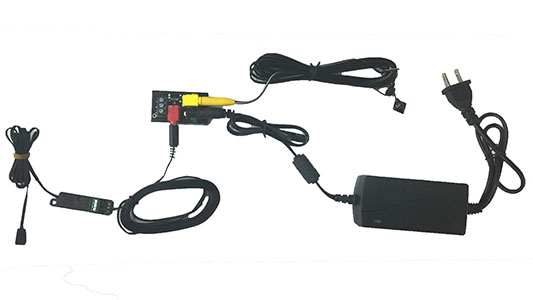

Fully connected IR system shown here





Video Instructions






Recommended Outlet

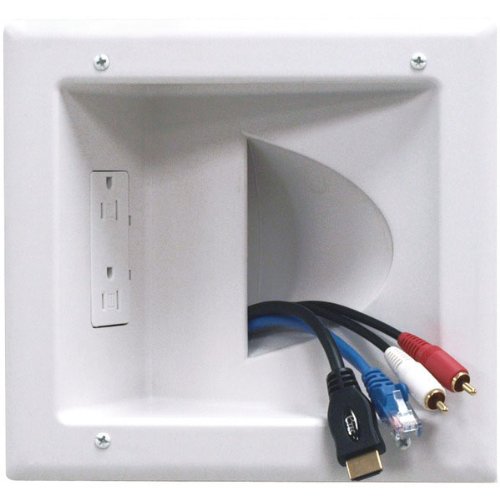

For easiest installation, you should install a recessed duplex receptacle:

You need to plug both the TV and IR into the outlets.
